| Lighting Facts |
| LED Color | Cool White |
| Length | Custom |
| Connection | 2 wire |
| Dimensions | 1/2" diameter |
| Voltage | 120V AC |
| Color Temperature | 6400K
 |
| Light Output | 34 lumens per foot |
| Bulb Orientation | Vertical (directional) |
| Bulb Spacing | 1 inch |
| Outer Tubing Color | Clear |
| Power Consumption | 1 watt per foot |
| Cutting Interval | 36 inches |
| Rated Lifespan | 60,000 hours |
| Maximum Run | 150' |
| Suitable for Outdoor Use | Yes |
| Operating Temperature | -4°F - 104°F |
| Dimmable | Yes |
| Chasing | No |
| UL Listed | Yes |
| Warranty | 1-year limited Manufacturer warranty |
| Length : 148 feet |
| Input : 120 volt |
| Lifetime : 100,000 hours |
| Power Consumption : 0.8 watts per foot |
| Cutting Intervals : 19.5 inches |
| Temperature Rating : -60°F - 220°F |
| Dimmable : Yes |
| Rope Diameter : 1/2 inch |
| Bulb Placement : Omnidirectional |
| Bulb Spacing : 1 inch |
| Max Run Length : Standard Power Cord : 180 feet |
| High Output Rectifier : 600 feet |
| LEDs/Meter : 39 LEDs/M |
| UV Protected : Yes |

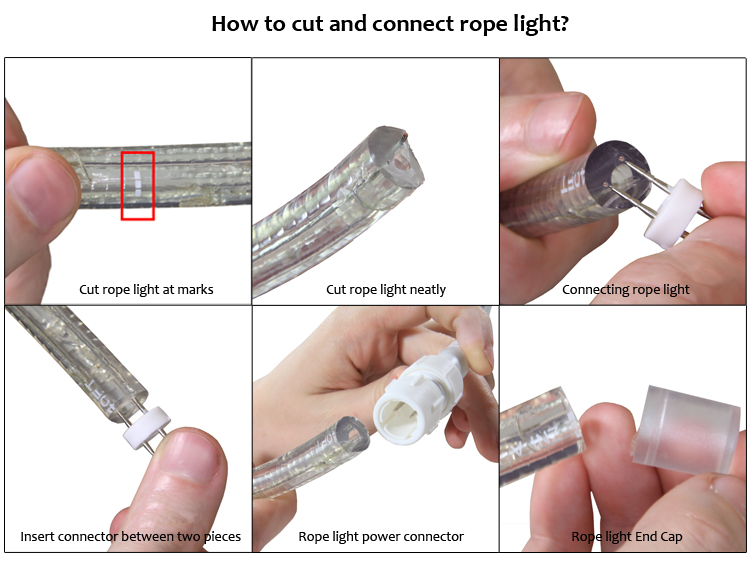

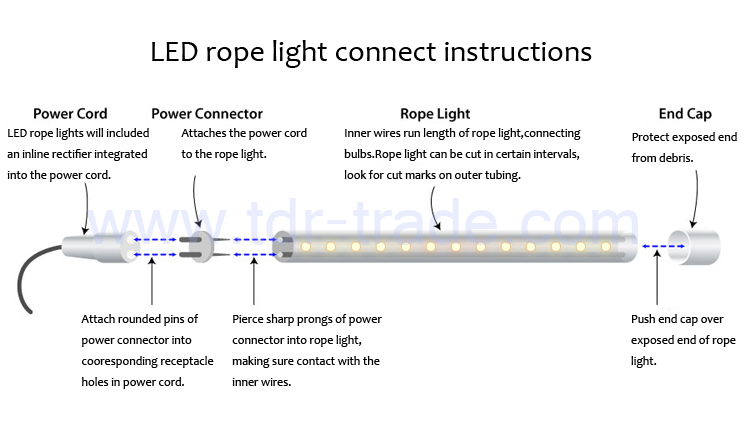

The following instructions are here to help you learn how to work with your rope lights and their accessories. Be sure to adapt these instructions as necessary to accommodate the particular type of rope light you are working with, LED vs. incandescent, 2-Wire vs. 3-Wire, etc.
Important Notes:
- Always unplug the rope light before installing, cutting, or modifying in any way.
- Unroll rope light before attaching to a power source. DO NOT PLUG IN ROPE LIGHT WHILE IT IS STILL WOUND ON THE SPOOL AS THIS MAY MELT THE ROPE LIGHT.
- Cut only at designated marks.
- End cap must be attached before attaching to a power source.
- Cutting or damaging outer plastic tubing can present an electrical/fire hazard.
- Do not pull on or stretch rope light as this will damage the inner wires, causing sections to fail.
Q1:Can i get a sample of led rope light?
A1: If you are interested in testing out our LED rope lights before committing to a full spool or a long length, we recommend ordering a single section of custom cut LED rope light.
Q2:What do i do when a section of rope light burns out?
A2:Rope lights are wired into sections, and when a single bulb eventually burns out, the entire section that it is in will go dark. The burnt out section then needs to be cut out (look for the cut marks) and replaced with a section of "good" rope light using inline splices. This is why it is always a good idea to get a little more rope light than you actually need for your project, so you can have some spare sections on hand for when a burnout occurs.
Any needs,please contact us with below information:
Contact : Betty
Skype: bettywan1987
Whatsapp: 86 13425 494600
Email: bettywan2009@hotmail.com
Website: www.pinzhonglighting.com
|
|

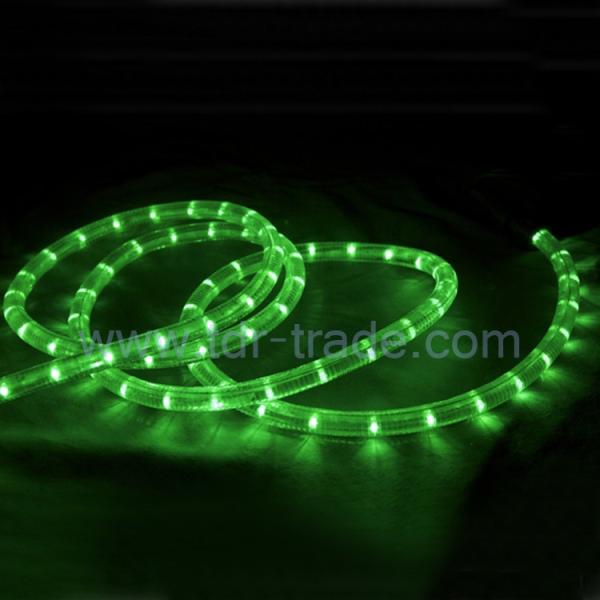

Green LED 120v Rope Light Spool - 150ft Images
|
